The Hidden Risks of Aging Switchgear in Mission-Critical Facilities

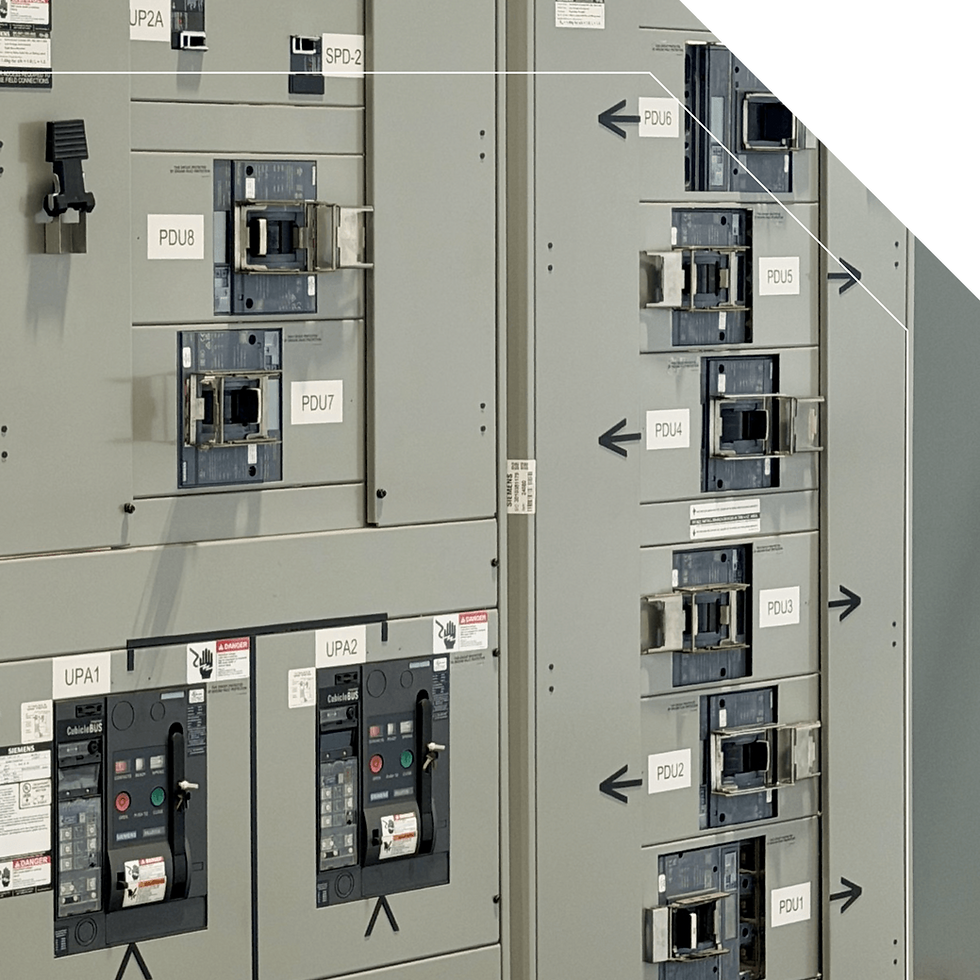

Every mission-critical facility depends on its electrical distribution system, and at the heart of that system is switchgearWhen it works, nobody thinks about it. When it fails, the consequences are immediate and severe: unplanned downtime, equipment damage, safety hazards, and in data center environments, revenue losses measured in thousands of dollars per minute.

The challenge is that switchgear failure rarely announces itself. Aging switchgear deteriorates gradually, and the risks compound invisibly until a catastrophic event forces the issue. This article examines the hidden risks of aging switchgear and what facility managers should do about them.

How Switchgear Ages

Switchgear is engineered to last 20 to 30 years under normal operating conditions, but “normal” in a data center or manufacturing facility often means continuous loading, frequent (or a lack of any) switching operations, and environmental stresses that accelerate wear. The primary degradation mechanisms include:

• Insulation breakdown from thermal cycling and moisture absorption

• Contact erosion from repeated switching operations

• Mechanical wear on operating mechanisms and springs

• Corrosion of bus bars and connections from environmental exposure

• Lubricant degradation on moving parts

• Non-operation component degradation

• Power System Controls components such as Programanble Logic Controllers (PLC’s), relays and trip units have solid state components such as control boards and power supplies that often show increased failure rates after 10-15 years.




These processes happen slowly. A switchgear assembly that performed flawlessly for 15 years may be approaching a failure threshold that is invisible to routine visual inspection or even thermographic inspection with an infrared camera.

The Real Cost of Switchgear Failure

When switchgear fails in a mission-critical facility, the costs cascade rapidly. Direct costs include emergency repair or replacement of the failed equipment, which can take weeks or months for custom switchgear. Downtime costs in data center environments average $5,600 per minute, and for facilities supporting financial trading, healthcare systems, or cloud services, the figure can exceed $10,000 per minute.

Indirect costs include damage to downstream equipment, contract penalties for SLA violations, insurance premium increases, regulatory scrutiny, civil disputes, and reputational damage. A single switchgear failure event can cost more than a proactive upgrade program that would have prevented it.

Warning Signs to Watch For

Facility managers should watch for several indicators that their switchgear may be approaching end of life or require immediate maintenance.

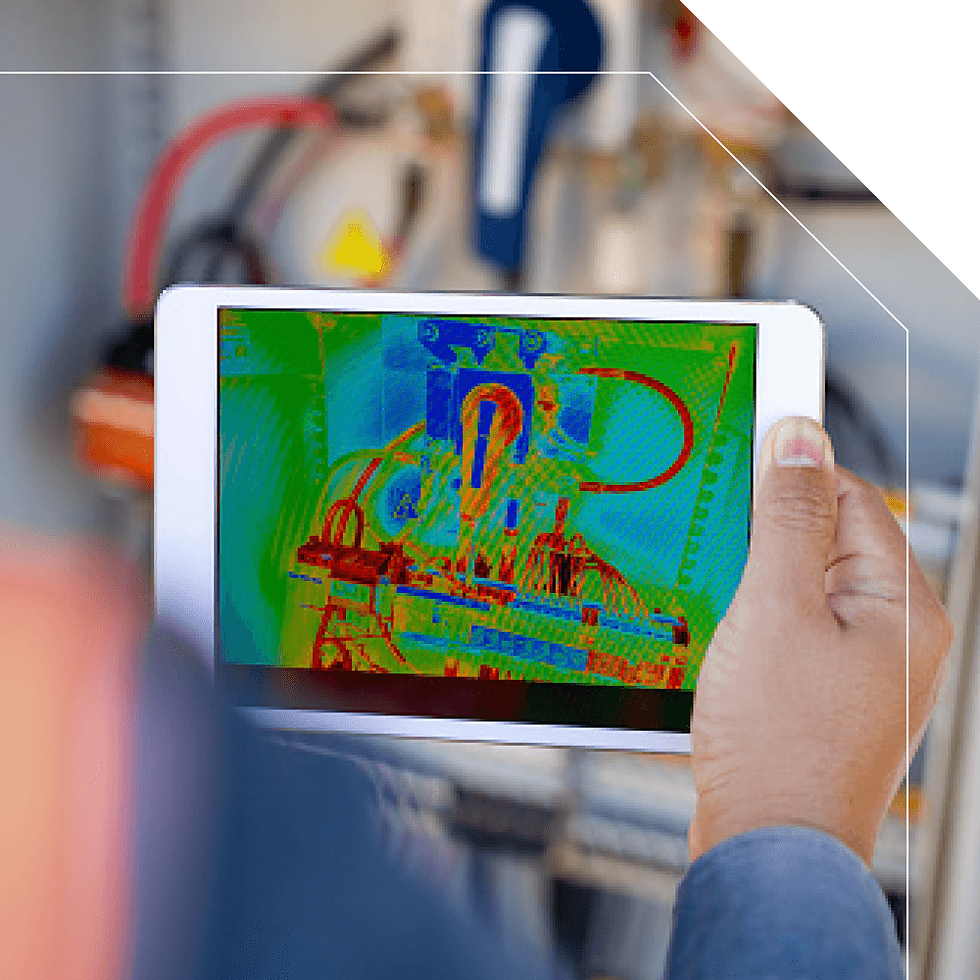

Thermal anomalies are one of the earliest warning signs. Infrared thermography can detect hot spots on bus connections, breaker contacts, and cable terminations that indicate loose connections or deteriorating contacts. Any temperature differential above 10 degrees Celsius relative to similar components under similar load warrants investigation — a threshold consistent with NETA MTS (Maintenance Testing Specifications) guidelines for electrical equipment. If the facility has redundant power paths, load transfers and/or load banks maybe be needed for effective thermographic scanning.

Unusual sounds during switching operations, such as excessive buzzing, chattering, or sluggish operation of circuit breakers, indicate mechanical wear or misalignment that can lead to failure during a critical operation.

Tripping anomalies, including nuisance trips or failure to trip during fault conditions, indicate that protective devices are no longer operating within their design parameters. This is one of the most dangerous failure modes because it means the protection system cannot be relied upon.

Visible deterioration such as discoloration, rust, pitting contacts, cracked insulators, or evidence of tracking (carbonized paths on insulating surfaces) all indicate advanced degradation.

The Arc Flash Dimension

Aging switchgear presents an elevated arc flash risk. As insulation degrades and contacts wear, the probability of an internal arc fault increase. An arc flash event inside a switchgear enclosure releases extreme heat — temperatures exceeding 28,000 degrees Fahrenheit, comparable to the surface of the sun — along with intense pressure waves, molten metal, and toxic gases.

The incident energy levels in a switchgear arc flash can be lethal to anyone within the arc flash boundary. Even when personnel are not injured, the equipment damage from an internal arc fault typically renders the switchgear unrepairable, requiring emergency replacement under the worst possible conditions: no power, no spare, and a facility that needs to be back online immediately.

This is why arc flash hazard analysis per IEEE 1584 and NFPA 70E should be updated whenever switchgear is modified, when upstream protective devices change, or at minimum every five years. Outdated arc flash labels give personnel a false sense of safety.

Proactive Management vs. Reactive Replacement

The decision to proactively manage aging switchgear versus waiting for failure is ultimately a risk management one, with economics, safety, and operational continuity all at stake.

A planned switchgear upgrade can be scheduled during maintenance windows, coordinated with redundant power paths, and executed methodically over weeks or months. The facility maintains control of the timeline, budget, and risk. Importantly, the same 16-to-24-week lead time for custom switchgear applies in both planned and emergency scenarios — the difference is that a planned approach lets you absorb that lead time on your own schedule rather than under crisis conditions.

An emergency replacement after failure eliminates all those advantages. Emergency engineering, expedited manufacturing, and crash installation schedules multiply costs. And the facility operates in a degraded state, often running temporary power with reduced redundancy, for the entire duration.

What You Should Do Now

What You Should Do Now

If your facility has switchgear that is 15 years or older, you should take several immediate steps:

• Commission for a comprehensive switchgear condition assessment including infrared thermography, insulation resistance testing, contact resistance measurements, and mechanical operation testing.

• Update your arc flash hazard analysis to reflect current system conditions.

• Develop a capital planning timeline for switchgear replacement or upgrade.

• Identify qualified electrical contractors with OEM certifications for your specific switchgear manufacturer.

• Establish a preventive maintenance program if one does not already exist.

• Confirm that any Primary and Power System Controls components are within manufacture anticipated useful life and that certified replacement parts are still available.

The goal is not to replace all aging switchgears immediately. It is to understand the condition of your equipment, quantify the risk, and develop a planned approach to managing that risk before the equipment makes the decision for you.

The Bottom Line

Aging switchgear is a silent risk multiplier in mission-critical facilities. The equipment does not send warnings when it is approaching failure. The consequences of failure are severe, immediate, and expensive. And the window between “still working” and “catastrophic failure” can be disturbingly narrow.

Proactive assessment and planned upgrades are not optional expenses. They are risk management investments that protect uptime, safety, and the financial performance of the facility. The best time to address aging switchgear is before it demands your attention on its own terms.
